Heavy Pattern Cross Head Chrome Angled Wheel Head Valve

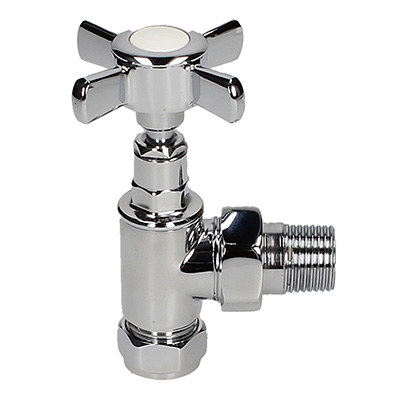

Valve Image

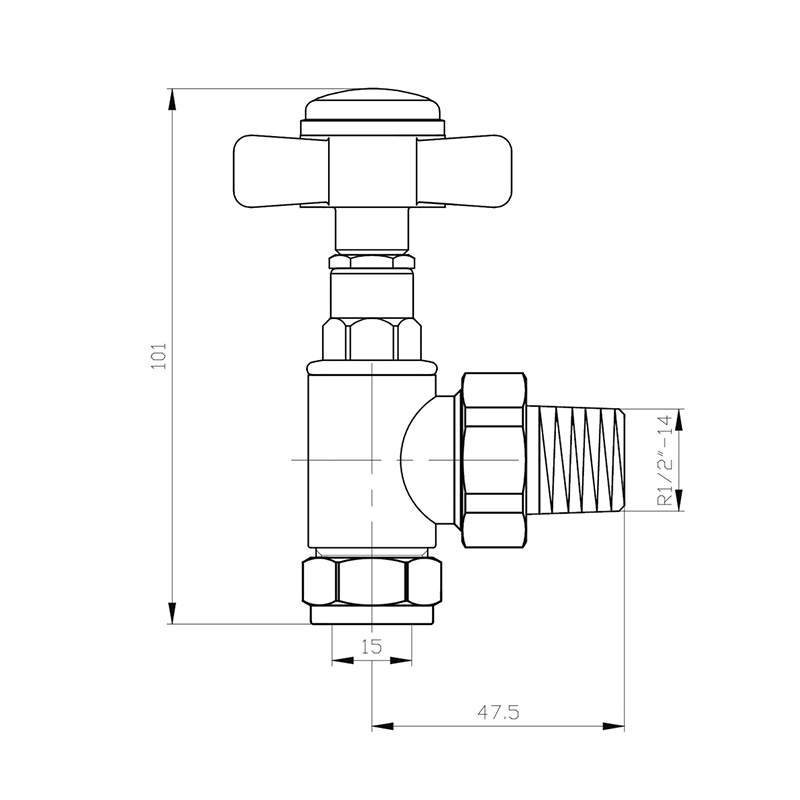

Valve Technical Image

Description

This single Evolve cross head 15mm chrome angled wheel head radiator valve is a traditional tap head radiator valve.

Materials

  • Valve body made of chrome-plated CW614N brass
  • Valve insert made of CW614N brass with EPDM seals
  • Tailpiece and union-nut made of chrome-plated brass
  • With polished finish

Specification

Manufacturer BiWorld Controls
Model Number EV-CH15A
Max. working pressure 10 bar
Max. pressure differential 1 bar
Min. water temperature 2C
Max. water temperature 100C
Max. ambient temperature 50C
Manual Click here to download
